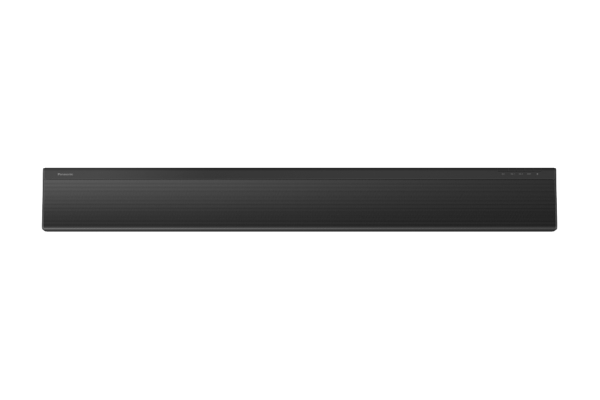

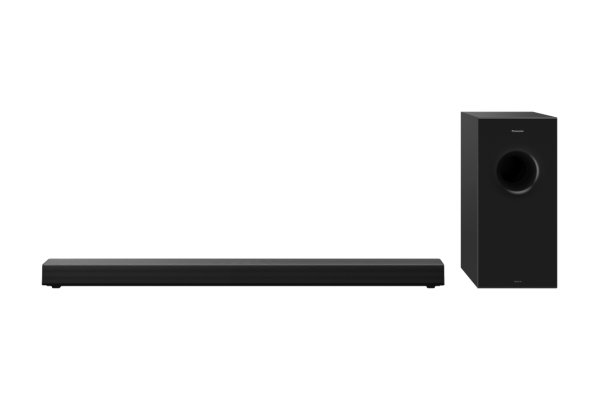

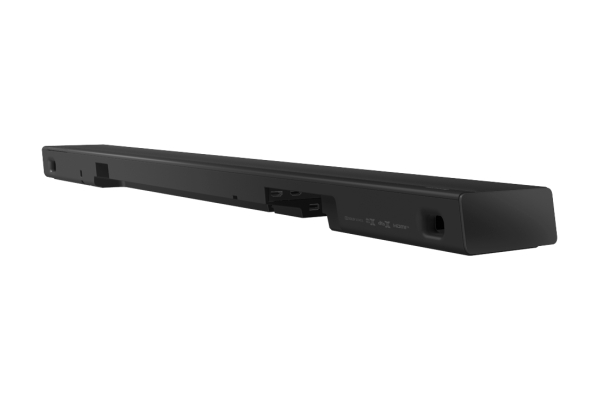

SC-HTB600EBK
360W HOME THEATER AUDIO SYSTEM
The latest 2.1 Soundbar and subwoofer from Panasonic
On demonstration at our Shop
Amplifier | Amp Type | 2.1 ch | |
---|---|---|---|
RMS Output Power | Total RMS Stereo Mode Power | 360W | |
Front Speaker (Left / Right) | 80W + 80W (1K kHz, THD 10%, 4Ω) | ||
Subwoofer | 200W (100 Hz, THD 10%, 3Ω) | ||
Speaker System | Front Speaker (Left / Right) | Type | 1 way , 1 speaker system (Bass reflex) |
Speaker Unit | Full Range: 4.5 x 10 cm Cone Type x 2 | ||
Bass Expand | Bass Reflex Port | ||
Subwoofer | Type | 1 way , 1 speaker system (Bass reflex) | |
Speaker Unit | Woofer: 16 cm Cone Type x 1 | ||
Bass Expand | Bass Reflex Port | ||
Wireless | Yes | ||
Network | Bluetooth | Version | Bluetooth® Ver 5.0 |
Class | Class 2 | ||
Codec | SBC | ||
Connectivity | Multi-Pairing (MAX 8 Devices) | ||
WiFi | Standard | – | |
Frequency Band | – | ||
Smartphone App | Music Streaming App *¹ | Yes (Bluetooth) | |
Panasonic Music Control App *¹*² | – | ||
Chromecast built-in | – | ||
Terminal | HDMI | Input | x 1 |
Output | x 1 (eARC) | ||
Audio Input | Optical Input | x 1 | |
Coaxial Digital Input | – | ||
Analog Input (Pin Jack / φ3,5) | – | ||
Other | IR System Terminal | – | |
USB Port | x 1 (For Service Use and Customer Software Update) | ||
LAN | – | ||
Function | Sound Function | Surround | 3D Surround / Virtual Surround |
SOUND MODE | STANDARD, MUSIC, CINEMA, VOICE, NEWS | ||
Bass Boost | Yes | ||
Subwoofer Level Adjustment | Yes(5 levels) | ||
Clear-mode Dialog | Yes | ||
Dialog Level Control | – | ||
Low-volume Mode | – | ||
Auto Gain Control | – | ||
Direct music mode with remote control | – | ||
Auto LIP Synchronization with HDAVI Control | – | ||
Decoder Function / Format | LPCM | Yes (Max 7.1ch) | |
Dolby Digital | Yes | ||
Dolby Digital + | Yes | ||
Dolby True HD | Yes | ||
Dolby Atmos | Yes | ||
DTS Digital Surround | Yes | ||
DTS ES | Yes | ||
DTS 96/24 | Yes | ||
DTS-HD HR | Yes | ||
DTS-HD High Resolution Audio | Yes | ||
DTS-HD Master Audio | Yes | ||
DTS : X | Yes | ||
DTS Virtual : X | Yes | ||
HDMI Function | CEC | Yes | |
Audio Return Channel(for HDMI Output)*² | Yes(eARC) | ||
LPCM Multi Channel Input (HDMI Input) | – | ||
1080p, Deep Color, x.v. Color | Yes | ||
4K Pass through | Yes | ||
FULL HD 3D COMPATIBLE | Yes | ||
HDMI UP Conversion | – | ||
HDR10 Pass Through | Yes | ||
HDR10+ Pass Through | – | ||
Dolby Vision Pass Through | Yes | ||
USB Function | Service Use | Yes | |
Customer Software Update | Yes | ||
USB Host Play | – | ||
Playback Format | – | ||
Main Unit Setting | Wall Mountable | Yes | |
Matching TV Size | 43 inch and above | ||
General | Main Unit | Power Supply | AC 220 – 240 V, 50 Hz |
Power Consumption *³ Normal Use | 30W | ||
Power Consumption *³ Network Standby Off | 0.5W (approx.) | ||
Power Consumption *³ Network Standby On | 2W (approx.) | ||
Subwoofer | Power Supply | AC 220 – 240 V, 50 Hz | |
Power Consumption *³ Normal Use | 36W | ||
Power Consumption *³ Network Standby Off | 0.5W (approx.) | ||
Power Consumption *³ Network Standby On | 2W (approx.) | ||

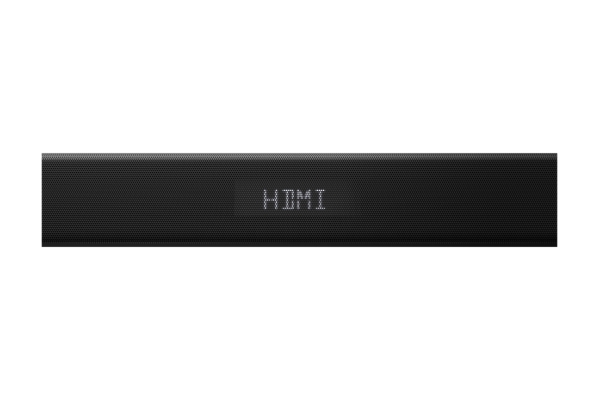

Display | LED(5 Digit Union Jack) | ||
Dimmer | Bright/Dark/Display Off | ||
Auto OFF | Yes | ||
Dimension | Main Unit (W x H x D) | For table top layout | 962 x 56 x 120 mm |
For wall mount layout | 962 x 66 x 132 mm | ||
Subwoofer (W x H x D) | 191 x 413 x 385 mm | ||
Weight | Main Unit | 3.3 Kg | |
Subwoofer | 8.4 Kg | ||
Color | Black | ||
Accessories | Remote Control | Yes | |
Dry Batteries for Remote Control | Yes | ||
AC Cord | Yes (Main Unit 1.5m / Subwoofer 1.2m) | ||
Wall Mount Bracket | Yes | ||
IR System Cable | – | ||
Operating Instruction | Yes | ||
Quick Setting Guide | – |
